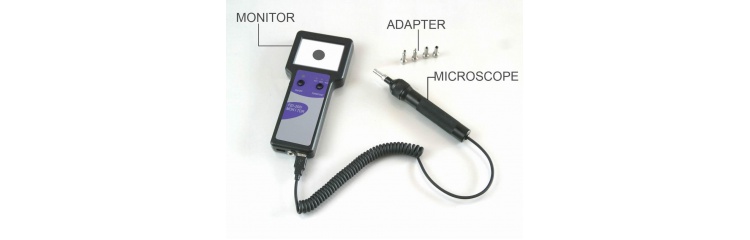

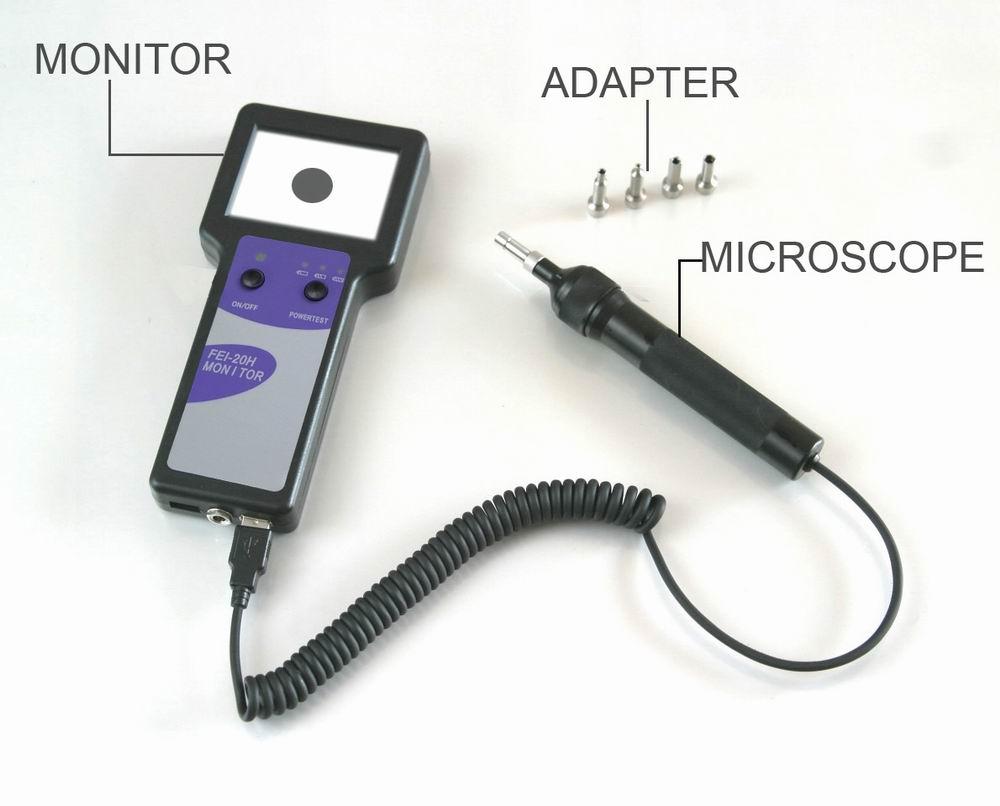

JW5005 Fiber Inspection Probe is the masterpiece of our engineer which with excellent performance and convenient operability, trust it is the best choice for fiber end face inspection.
Taking use of 220k pixel of TFT sharp and finely LCD, which magnify about 200 times of object, it makes you easier to judge the status of fiber end face. And it’s compact size made it ideal tool of connector end face inspection before fiber network installation, varies of adapters meet different requirements on inspect male fiber connectors & female fiber connectors, such as FC SC ST E2000 LC MU and TOSA ROSA fiber end face. It keeps working about 6 hours with 12V re-chargeable battery, which installed in monitor, or working by powered supply, and another choice for display is CRT monitor.
Features
- Sharp picture
- Easy operability
- Compact size and light weight
- Low power consumption, working over 6 hours
- Continuously one time after full recharge
Application
- Fiber network installation
- SFP, XFP, TOSA, ROSA inspection
- Fiber instrument output inspection
- Fiber connector end face inspection
Specifications
|
Image Zoom
|
200X
|
|
AV output
|
PAL
|
|
Display Screen
|
3.5〃TFT 220 K LCD
|
|
Power consumption
|
3W
|
|
working temperature
|
-10℃—+50℃
|
|
Storage Temperature
|
-20℃—+60℃
|
|
Voltage
|
12V recharge battery incl. or DC 12V, W/adaptor
|
|
working hour
|
over 6 hours
|
|
Dimension
|
monitor: 205mm(L)×94mm(W)×25mm(H); microscope:φ23mm×160mm
|
Standard Packages
|
Item/Model
|
Name
|
Qty
|
Remark
|
|
JW5005
|
Fiber Inspection Probe
|
1pcs
|
Standard
Accessories
|
|
JW35
|
Handheld Display (3.5inch)
|
1pcs
|
|
2.5mm-M
|
To inspect 2.5mm male connectors
|
1pcs
|
|
1.25mm-M
|
To inspect 1.25mm male connectors
|
1pcs
|
|
FC/PC-F
|
To inspect FC in-adapter ferrule
|
1pcs
|
|
SC/PC-F
|
To inspect SC in-adapter ferrule
|
1pcs
|
|
ST/PC-F
|
To inspect ST in-adapter ferrule
|
1pcs
|
|
LC/PC-F
|
To inspect LC in-adapter ferrule
|
1pcs
|
| |
Battery Charger
|
1pcs
|
| |
Connection Cable to table display (USB to BNC)
|
1pcs
|
| |
Hard Carrying Case
|
1pcs
|
| |
User Manual
|
1pcs
|
