Optical Spectrum Analyzer OSA
RXT-4510

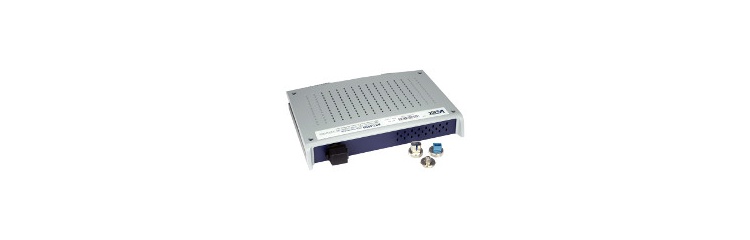

The RXT-4510 OSA Module is an Optical Spectrum/Channel Analyzer for CWDM and DWDM networks. Using superior micro-optic design and MEMS tuning technology, the RXT-4510 module measures key optical parameters such as wavelength, channel power, and OSNR.
MODULE HIGHLIGHTS
- Precise measurement of WDM wavelengths
- Wide wavelength range
- High wavelength accuracy and resolution
- Built-in wavelength reference
- High power sensitivity
- Excellent power accuracy
- Rugged, reliable design - No moving parts
- Superior shock resistance
- Periodic calibration not required
- Ultra-low power consumption
- Low temperature sensitivity
- Intuitive operation with dedicated test functions

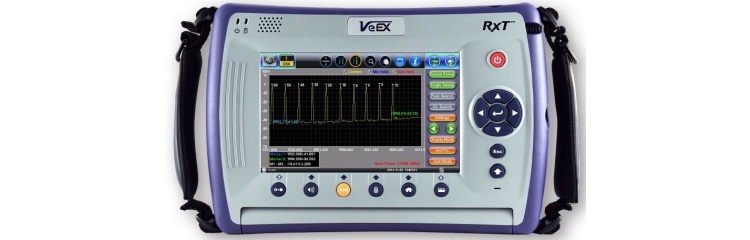

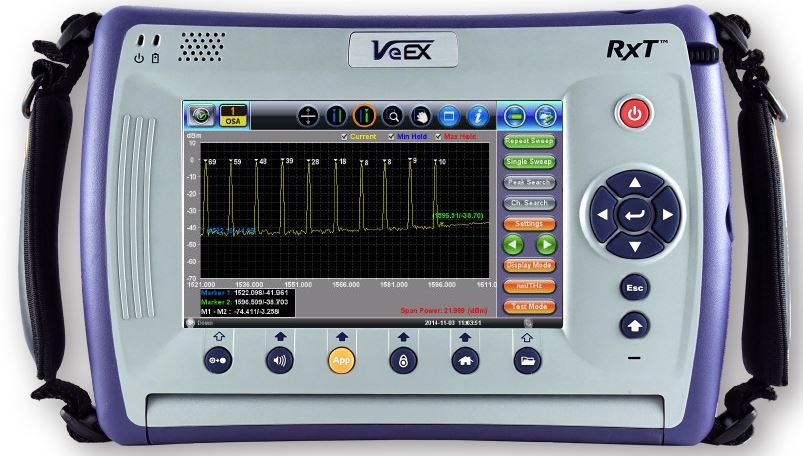

- Touch screen for simple zooming and navigation
- Battery operating time > 8 hours
KEY FEATURES
- S, C and C+L band wavelength ranges
- Fast continuous scanning - full spectrum in < 7 sec
- Simultaneous measurements of up to 160 channels
- DWDM channel spacing down to 50 GHz
- Channel power measurement
- Channel threshold detection
- Span power measurement
- Continuous sweep with min/max hold
- Channel frequency and wavelength delta vs. ITU grid
- In-band OSNR measurement
- High wavelength accuracy: ± 50 pm
- High dynamic range: > 50 dB
- OSNR measurement: > 35 dB
- Low Polarization Dependent Loss (PDL): < 0.3 dB
- Universal optical interface with industry standard adaptors
- Supports 10/40/100 Gbps transmission modulation types
- DFB laser qualification
- DWDM channel monitoring per ITU G.694.1 grid for 50/100/200 GHz spacing
- CWDM optical channel monitoring per ITU G.694.2 grid
