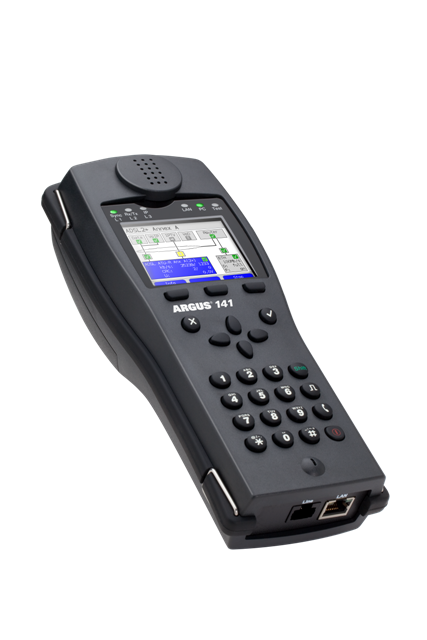

Fast testing guaranteed: the ARGUS 141 xDSL Tester focuses on the key functions for testing VDSL2 or ADSL and is ready to operate extremely quickly. The user-friendly handheld tester is able to integrate both interfaces in a single device. Separate chip sets for ADSL and VDSL2 ensure optimum performance, thus providing a high level of interoperability and a long reach. The results are presented both in tabular or graphical form.
Well equipped for the future: as an option, the ARGUS 141 can be upgraded to test Voice over IP (VoIP) and data services such as ping, trace route or download via xDSL – this upgrade is even available after purchase.
During VoIP testing, the MOS value is also calculated automatically. As a lineman’s handset, the ARGUS 141 simulates terminal equipment such as a phone or replaces a PC and determines the relevant quality parameters. If required, intec can also supply the checker with bridge or router functions to test customer modems.
The ARGUS 141 is extremely user-friendly thanks to its large 320 x 240 pixel color display and long-life Li-ion battery pack, which can be replaced in the field.
Interfaces incl.:
- basic xDSL packages available with
- ADSL2/2+
- VDSL2
- Ethernet 100 Base-T
Optional interfaces:
- ADSL2/2+ Annex A
- ADSL2/2+ Annex B
- ADSL2/2+ Annex J
- ADSL2/2+ Annex L
- ADSL2/2+ Annex M
- VDSL2
Features incl.:
- Router mode
- Bridge mode
- IP ping
- IP traceroute
- Modem simulation
- Update Tool
Optional features:
- Download package
- ATM tests
- VoIP tests (incl. MOS)
- VoIP phone
- DMT Analysis (PSD)
- Loop test
- WINplus
General specifications:
- Color display
- Butt set
- 50 memory slots
- USB client interface
- Li-Ion battery pack
- Power supply unit
- Printed manual
- HxBxT: 235 x 97 x 65 mm
- 710 g
